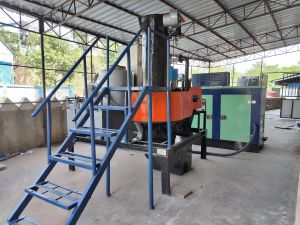

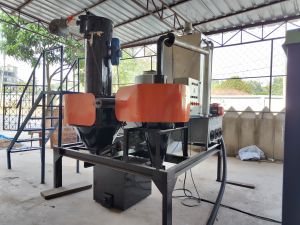

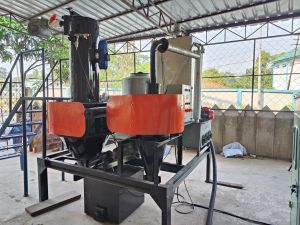

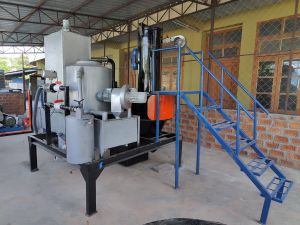

12KVA Biomass Gasifier

14.91 Lac / 1 Piece

1 Piece (MOQ)

Edit

Business Type	Manufacturer, Exporter, Supplier, Trader
Brand Name	Enersol Biopower®
Country of Origin	India
Capacity	12KW (15KVA)
Click to view more

Preferred Buyer From

Location

India, South Africa, Nepal, Bangladesh, Myanmar

Product Details

Fuel

100% Biomass

Auxiliary Power Required

2.5hp

Biomass Consumption per Hour

18kg/hr.

Gas flow (NM3/hr.)

36NM³/hr.

Thermal Output At 100%

45,000Kcal/hr

Thermal Output At 80%

36,000 Kcal/hr.

Click Here to View Catalogue

Specifications

Brand Name	Enersol Biopower®
Capacity	12KW (15KVA)
Model Name	ESB-R BIO-12
Model No.	ESB-R12
Fuel	100% Biomass
Type of Gasifier	Downdraft Gasifier
Man power required	1no.
Auxiliary power required	2.5hp
Biomass consumption per hour	18kg/hr.
Gas flow (NM3/hr.)	36NM³/hr.
Thermal output at 100%	45,000Kcal/hr
Thermal output at 80%	36,000 Kcal/hr.
Gasification temperature	1050- 1100°C
Average gas calorific value	≥1000
Biomass feeding system	Manual
Ash removal system	Manual
Ash content	5-7%
start up	Auto ignition
Acceptable moisture in biomass	less than 20%
Material of construction	Mild Steel, Ceremic Brick & Stainless Steel
Water tank capacity	250-300ltrs.
Producer gas genset capacity	12KW (15KVA)
Starter	12V starter
Power factor	0.8 P.F.
Governor	Mechanical / Electronic governor
Phase	Three phase
Amps per phase	19amps/phase (three phase)
Frequency	50Hz
Voltage	415V
Engine Ignition system	Spark Ignition
Stroke	Four stroke engine
Bore x Stroke	115 x115
Rated speed	1500RPM
No of cylinder	Double cylinder
Lube oil sump capacity	7.2ltrs.
Cooling system	water cooled
Control panel	provided
Battery	Exide
Acoustic enclosure (canopy)	yes
Weight	2Ton
Size (Gasifier)	L10 x W7 x H8(feet)
