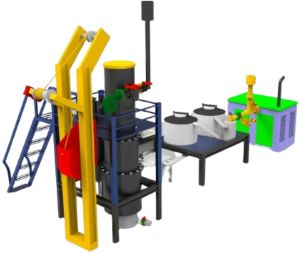

50KVA Biomass Gasifier

49.89 Lac / 1 Piece

1 Piece (MOQ)

Edit

Business Type	Manufacturer, Exporter, Supplier, Trader
Brand Name	Enersol Biopower®
Country of Origin	India
Capacity	50KW (62.5KVA)
Click to view more

Preferred Buyer From

Location

India, South Africa, Nepal, Bangladesh, Myanmar

Product Details

Auxiliary Power Required

4 HP

Biomass Consumption per Hour

75kg/hr.

Gas flow (NM3/hr.)

150NM³/hr.

Thermal Output At 100%

187,500Kcal/hr

Thermal Output At 80%

150,000 Kcal/hr.

Click Here to View Catalogue

Specifications

Brand Name	Enersol Biopower®
Capacity	50KW (62.5KVA)
Model Name	ESB-R BIO-50
Model No.	ESB-R50
Fuel	100% Biomass
Type of Gasifier	Downdraft Gasifier
Man power required	2-3nos
Auxiliary power required	4hp
Biomass consumption per hour	75kg/hr.
Gas flow (NM3/hr.)	150NM³/hr.
Thermal output at 100%	187,500Kcal/hr
Thermal output at 80%	150,000 Kcal/hr.
Gasification temperature	1050- 1100°C
Average gas calorific value	≥1000
Biomass feeding system	Manual / Automatic
Ash removal system	Manual
Ash content	5-7%
start up	Auto ignition
Acceptable moisture in biomass	less than 20%
Material of construction	Mild Steel, Ceremic Brick & Stainless Steel
Water tank capacity	1800-2000ltrs.
Producer gas genset capacity	50KW (62.5KVA)
Starter	24V starter
Power factor	0.8 P.F.
Governor	Electronic governor
Phase	Three phase
Amps per phase	82amps/phase @100% 65amps/phase at 80% (three phase)
Frequency	50Hz
Voltage	415V
Engine Ignition system	Spark Ignition
Stroke	Four stroke engine
Bore x Stroke
Rated speed	1500RPM
No of cylinder	Six cylinders
Lube oil sump capacity	22ltrs.
Cooling system	water cooled
Control panel	provided
Battery	Exide
Acoustic enclosure (canopy)	yes
Weight	8ton
Size (Gasifier)	L25 x W18 x H22(feet)
