Twitter| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Brand Name | Enersol Biopower® |
| Country of Origin | India |
| Capacity | 8KW (10KVA) |
| Click to view more | |
Preferred Buyer From
| Location | India, South Africa, Nepal, Bangladesh, Myanmar |
Product Details
Fuel
100% Biomass
Auxiliary Power Required
2.5hp
Biomass Consumption per Hour
12kg/hr.
Gas flow (NM3/hr.)
24NM³/hr.
Thermal Output At 100%
30,000Kcal/hr
Thermal Output At 80%
24,000 Kcal/hr.
Click Here to View Catalogue
ViewSpecifications
| Brand Name | Enersol Biopower® |
| Capacity | 8KW (10KVA) |
| Model Name | ESB-R BIO-08 |
| Model No. | ESB-R08 |
| Fuel | 100% Biomass |
| Type of Gasifier | Downdraft Gasifier |
| Man power required | 1no. |
| Auxiliary power required | 2.5hp |
| Biomass consumption per hour | 12kg/hr. |
| Gas flow (NM3/hr.) | 24NM³/hr. |
| Thermal output at 100% | 30,000Kcal/hr |
| Thermal output at 80% | 24,000 Kcal/hr. |
| Gasification temperature | 1050- 1100°C |
| Average gas calorific value | ≥1000 |
| Biomass feeding system | Manual |
| Ash removal system | Manual |
| Ash content | 5-7% |
| start up | Auto ignition |
| Acceptable moisture in biomass | less than 20% |
| Material of construction | Mild Steel, Ceremic Brick & Stainless Steel |
| Water tank capacity | 250-300ltrs. |
| Producer gas genset capacity | 8KW (10KVA) |
| Starter | 12V starter |
| Power factor | 0.8 P.F. |
| Governor | Mechanical / Electronic governor |
| Phase | Three phase |
| Amps per phase | 11amps/phase (three phase) |
| Frequency | 50Hz |
| Voltage | 220V / 415V |
| Engine Ignition system | Spark Ignition |
| Stroke | Four stroke engine |
| Bore x Stroke | |
| Rated speed | 1500RPM |
| No of cylinder | Double cylinder |
| Lube oil sump capacity | 5.5ltrs. |
| Cooling system | water cooled |
| Control panel | provided |
| Battery | Exide |
| Acoustic enclosure (canopy) | yes |
| Weight | 1.8 - 2 ton |
| Size (Gasifier) | L10 x W7 x H7(feet) |

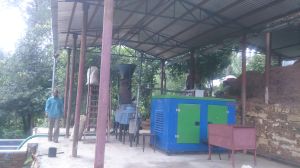

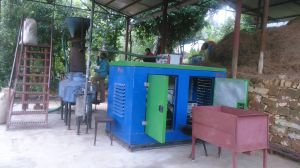

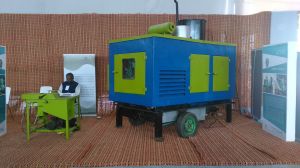

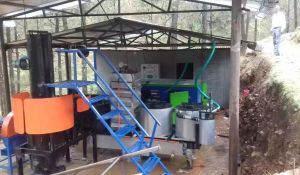

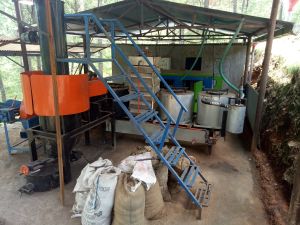

Looking for "8KVA Biomass Gasifier" ?
