Product Details
ViewClick Here to View Catalogue
| Brand Name | Enersol Biopower® |

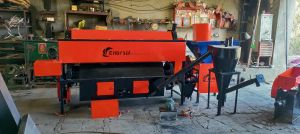

| Model Name | ECO-Green Biochar100 |
| Fuel | 100% biomass |
| Feeding system | Semi automatic |
| Acceptable moisture in biomass | less than1 5% |
| Biomass acceptable size | 6-10mm |
| Power required | 10-15HP |
| SCREW CONVEYOR WITH HOPPER | |
| Capacity | 100kg/hr. |
| Conveyor flow rate | 100kg/hr. |
| Material | Mild Steel |
| PRE-HEATER | |
| Capacity | 100kg/hr. |
| Operating temperature | 100°C - 200°C100°C - 200°C100°C - 200°C |
| Material | Mild Steel |
| AIR LOCKING SCREW | |
| Specifications | Low pressure reaction vessels with 100kg/hr. capacity |
| Material | Mild Steel |
| MAIN REACTOR | |
| Material | Stainless Steel |
| Capacity | 100kg/hr. |
| GAS COOLING & CLEANING SYSTEM WITH CONDENSOR | |
| Water tank capacity | 2000ltrs. |
| Material | Mild Steel |
| Condenser material | Stainless Steel |
| Gas cleaning scrubber material | Stainless Steel |
| SREW CONVEYOR WITH COOLING SYSTEM | |
| Capacity | 100kg/hr. (shell & tube heat exchanger) |
| Material | Mild Steel |
| Temperature | 350°C -50°C350°C -50°C |
| Gas burner material | Mild Steel |
| Burner type | Single burner |
| CONTROL PANEL AND THERMOCOUPLES | |
| Basic control panel with temperature control provision | yes |
| K type thermocouples | 4nos. |
| J type thermocouples | 2nos. |
| Dimension | L50 x W15 x H6 (feet) |
| Weight | 5ton approx. |
